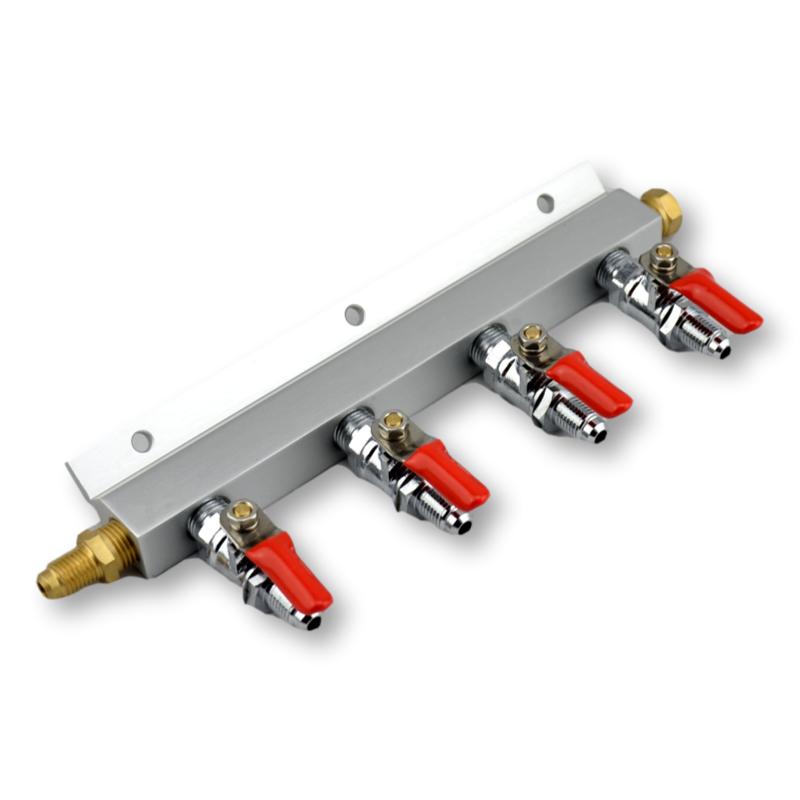

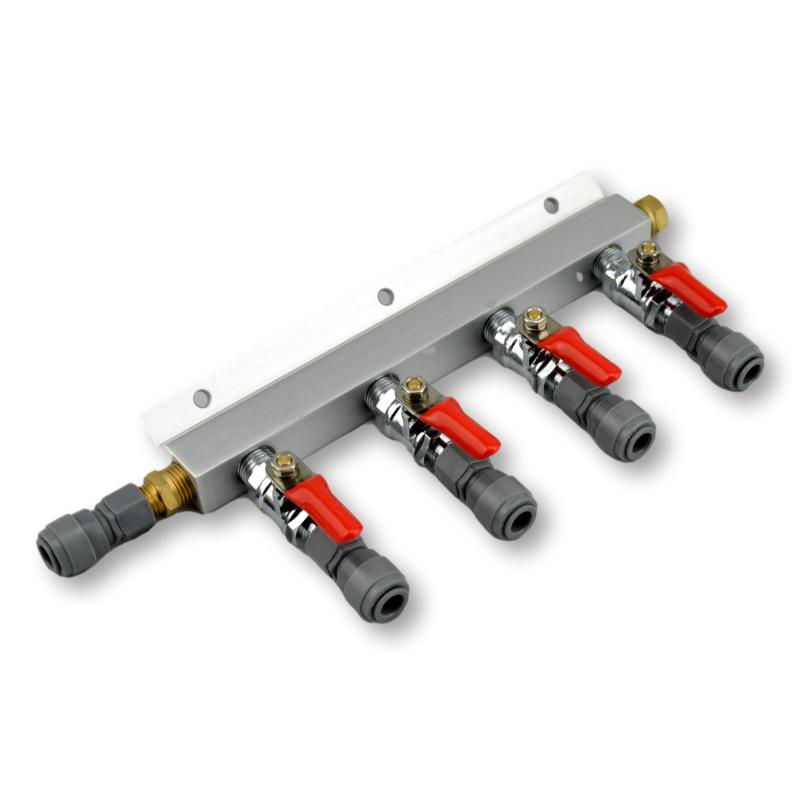

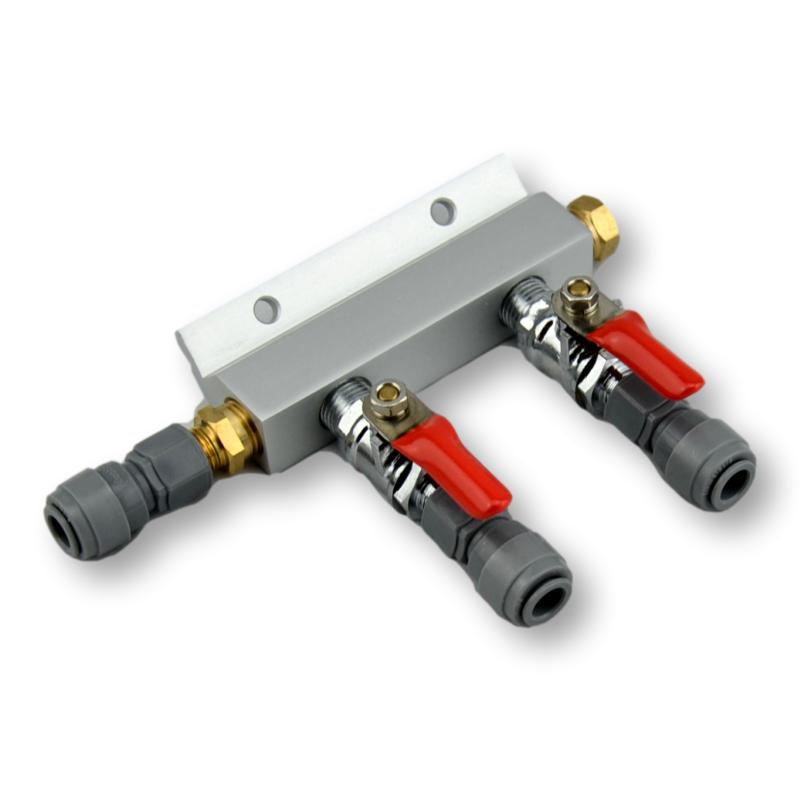

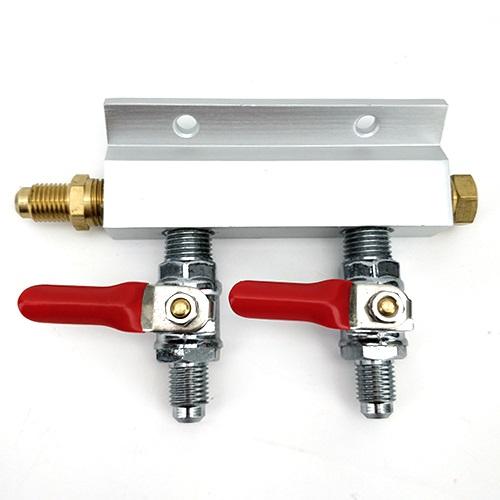

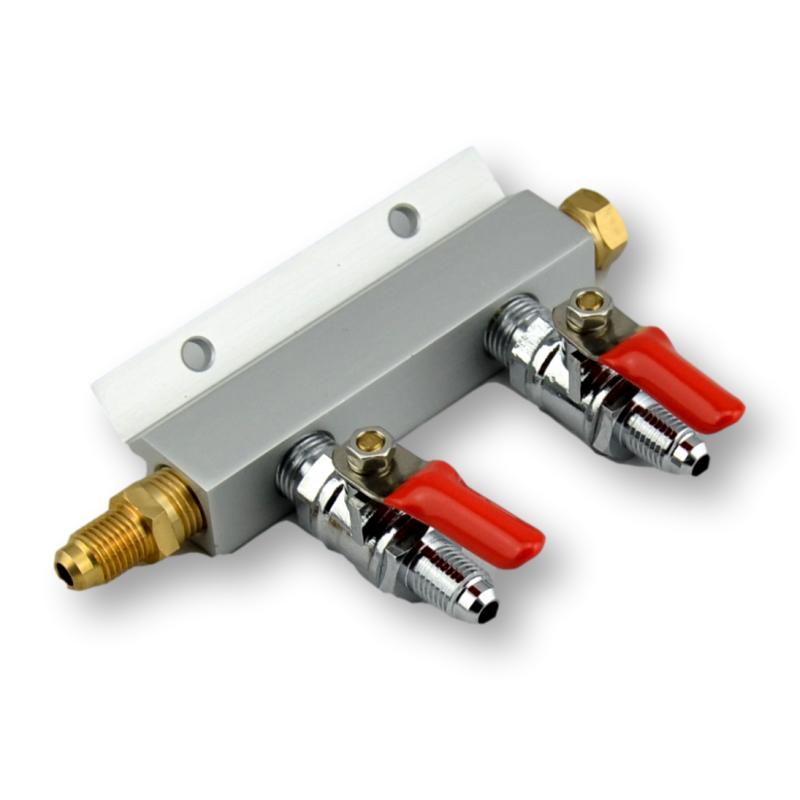

Gas Manifold | 2 and 4 Outlets with MFL Thread

The Gas Manifold | 2 and 4 Outlets with MFL Thread is a compact and flexible solution for distributing CO₂ from a single source to multiple keg lines. Each manifold features 3 or 5 x 7/16″ UNF male threads, compatible with Duotight 8 mm push-in fittings or other MFL hose connectors. This allows for easy connection, rearrangement, or replacement of individual gas lines—ideal for use in kegerators, keezer setups, or when filling bottles under pressure (e.g. with the iTap).

Each outlet is equipped with its own shut-off ball valve and integrated check valve to prevent backflow of gas or liquid into the manifold. Due to the check valve mechanism, there is an expected pressure drop of approx. 2 psi (0.13 bar) across each valve—adjust your main regulator accordingly to compensate.

We recommend using the appropriate locking clips to secure your Duotight fittings. Before first use, all threaded push-in connectors should be tightened with a tool. Hand-tightening only may result in leaks at the thread-to-fitting interface.

Note: This product is rated for gas use only, up to a maximum pressure of 100 psi (6.9 bar).
